4l80e Transbrake



REAL power with reliability

Description Our 4L80e and 4L85E transmissions are one of the strongest in the world. We offer several options so you can have one custom built for you particular application. Whether it is Offroad racing, Kings of the Hammer, drag racing or just a custom street rod.

Once installed, the TCI® GM 4L80E Transbrake Valve Body modifies your transmission into afull manual shift, reverse pattern unit with an impressive Pro Tree transbrake feature. It alsoretains torque converter clutch engagement in overdrive and still allows lockup in lower enginerpm. Full Credit Goes To Matt Happel at Sloppy Mechanics this. Just testing it out to improve my launch and hopefully get into the 10's. Thanks Matt If you ever s. The Only 4L80E Pro Transbrake Available Direct replacement for 1991 to 2010 4L80E Full Manual Reverse Pattern No Shift Computer Required No Moving Parts No Electrical Parts for Shifting Retains Lockup Function (Optional) Engine Braking Backs up from Reverse Shifter Position Adjustable Pressure from 150-300 psi Rock Steady Pressure Regulation.

Have you broken a Level II, V, or MXXVII 4L60E that is supposedly 700 HP capable with 450 HP? Multiple times? Have you ever read a build list for a 4L60E/65/70 and wondered why it sounded like everything in the trans was replaced for a performance build? That is because it’s the wrong unit to use in a big power application. We’re not here to mislead you. We could build and sell a very well built 4L60E that would compete with anybody’s on the market. But there is more demand for 4L80s, so business wise, it makes sense to pursue that market. We specialize in 4L80Es because we KNOW it is the only real option for REAL power with reliability.

Other builders are afraid to cut into their sales and tell you this. We’re not. We just want to be sure you get the strongest option available at the best price the first time. If this makes sense to you, take a look at our 4L80E options below.

The 4L80E is the descendant of the “Ole Reliable” TH400 transmission. It shares many components and design features. At Jake’s Performance the 4L80E is our most popular transmission. We have built them for applications ranging from heavy towing vehicles to 1800+ HP street/strip cars. The 4L80E has proven reliable like it’s predecessor.

Most of our development time is spent on the 4L80E. Look for some innovative new products in the near future that should make the 4L80E even stronger.

Amazon kindle macos. As with all Jake’s Performance transmissions they start with a select core that is disassembled, the case is hot tanked, pressure washed, inspected, painted and prepped for reassembly. They include all new friction clutches, bands, steel plates, soft parts, filter, modulator (if applicable), as well as hydraulic upgrades, bearings added at several thrust locations, and other modifications depending on power level.

We have established ourselves in the industry with our exclusive innovative 4L80E valve body designs whether we use our in house recalibration kit, or one of our transbrakes, you are getting what no other company in the industry has. Our valve body hydraulics have proven themselves repeatedly and our transbrakes have set the standard for release time.

We specialize in building the 4L80E for retrofit applications. If you have a 500+ HP musclecar, late model LSx powered car, or other combo that demands THE bulletproof trans, we can build it for you. We have more experience than any other aftermarket shop building 4L80E’s.

We have several upgrade options for the various stages of 4L80E. We offer two different transbrakes. Both designs will work in a stock depth pan.

Our D1 transbrake, also known as the Manual Low transbrake, allows normal reverse operation but requires the gear selector to be in the 1st or low gear position to operate. It is a very quick acting transbrake. It works very well in full manual configuration. It has some special tuning considerations for use with a controller in an automatic shift situation.

Our D3 transbrake allows for transbrake operation in any forward gear range. It requires transbrake activation for reverse. It works very well in automatic computer controlled applications because the shifter can be left in D3 and the controller shifts the transmission, instead of requiring the driver to shift from D1 after launch.

4l80e

All 4L80 builds now have a core charge due to core shortages. $250 for early style (91-98) and 99-up (late) style cores with a 7 bolt bellhousing will be $300. Providing a REBUILDABLE core will reduce the posted price by $250.

The Street/Strip (Stage 2) 4L80E includes all new friction materials, steels, bands, rollerized forward hub, rollerized output shaft thrust, heavy duty intermediate snap ring, 6 clutch direct pack, Hi-Energy carbon clutches in select locations, hydraulic modifications for much increased power capacity and firmer shifting. All 4L80Es also include a new boost valve assembly, new shift solenoids, manifold pressure switch, internal wiring, as applicable.

4l80e
PriceBuild #Build Description
$32504L80-2AAuto shift for computer controlled applications
$34504L80-2FMFull manual forward pattern
$43004L80-2RMTBReverse manual Transbrake
$36504L80-2ATB1Auto shift with Manual Low Transbrake (transbrake can only be activated in manual low position)
$37504L80-2FMTB1Full manual forward pattern with Manual Low Transbrake
$40004L80-2ATB3Auto shift with D3 transbrake
$41004L80-2FMTB3Full manual shift with D3 brake (allows 2nd or even 3rd gear launch)

The Stage 3 4L80E build adds the billet input shaft and rollerized billet forward hub for applications above 750 HP. This build will handle well over 1000 HP assuming moderate RPM range (less than 7000 rpm), average or lighter weight vehicle, and no large N2O usage.

PriceBuild #Build Description
$41504L80-3AAuto Shift for computer controlled applications
$43004L80-3FMFull manual forward pattern
$51504L80-3RMTBReverse manual Transbrake
$45504L80-3ATB1Automatic shift with Manual Low Transbrake (transbrake can only be activated in manual low position)
$46504L80-3FMTB1Full manual forward pattern with Manual Low Transbrake
$49004L80-3ATB3Auto Shift with D3 transbrake
$50004L80-3FMTB3Full manual shift with D3 brake (allows 2nd or even 3rd gear launch)

The Stage 4 4L80E adds the billet intermediate shaft. This makes it reliable to approximately 1000 HP/TQ. It will work at higher power levels if the RPM is less than 7000 RPM. Stage 4 builds are mainly for heavy vehicles, diesel, or large uses of N2O.

PriceBuild #Build Description
$46004L80-4AAuto shift for computer controlled applications
$47004L80-4FMFull manual forward pattern
$55504L80-4RMTBReverse manual Transbrake
$50004L80-4ATB1Auto shift with Manual Low Transbrake (transbrake can only be activated in manual low position)
$51004L80-4FMTB1Full manual forward pattern with Manual Low Transbrake
$53504L80-4ATB3Auto shift with D3 transbrake
$54504L80-4FMTB3Full manual shift with D3 brake (allows 2nd or even 3rd gear launch)

The Stage 5 4L80E build is the Stage 4 build but adds a 36 element sprag Super Drum for increased power capacity up to and over 1400-1500 HP/TQ.

PriceBuild #Build Description
$54004L80-5AAuto shift for computer controlled applications
$55004L80-5FMFull manual forward pattern
$64504L80-5RMTBReverse manual Transbrake
$57004L80-5ATB1Auto shift with Manual Low Transbrake (transbrake can only be activated in manual low position)
$58504L80-5FMTB1Full manual forward pattern with Manual Low Transbrake
$61004L80-5ATB3Auto shift with D3 transbrake
$62504L80-5FMTB3Full manual shift with D3 brake (allows 2nd or even 3rd gear launch)
$84004L80-5ATB3-210Auto shift with D3 transbrake and 2.10 gearset
$90004l80-5ATB3-210-36AAuto shift with D3 transbrake and 2.10 gearset plus aluminum 36 element drum

One of our biggest customer demands for the 4L80E is an all in one kit to install the 4L80E into a classic Camaro, Chevelle, Corvette, Nova or other GM car. We have put together the common parts used in most of these retrofits to make it easier for the customer to do so.

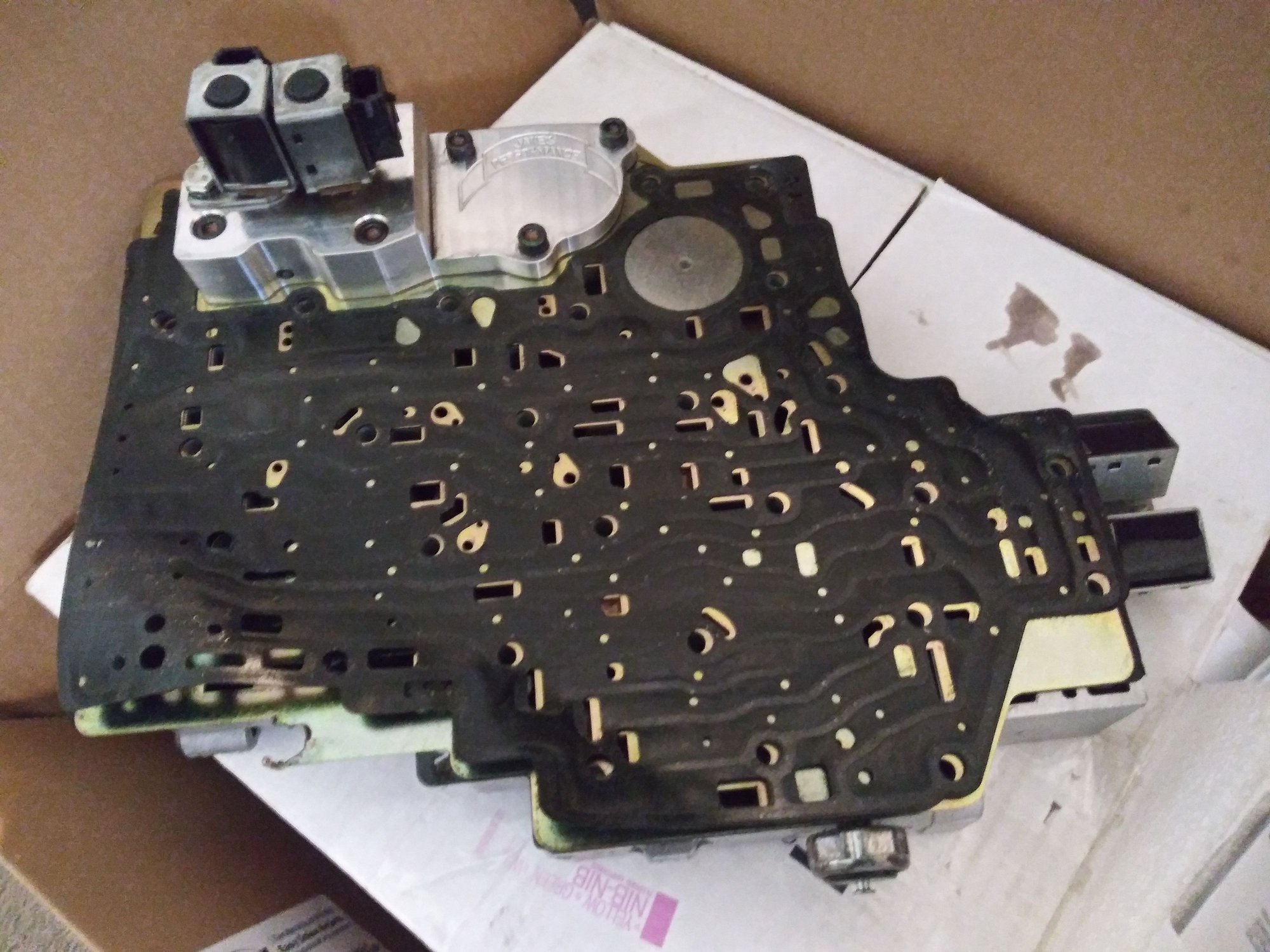

4l80e Manual Valve Body

The Muscle Car Kit will include a Stage 2 4L80E built with a mechanical speedo tailhousing for simple hookup to the existing cable speedo, a US Shift 80 Transmission Controller, Throttle Position Sensor (TPS) kit for Holley carbs, and a billet cover lockup converter. Typically this is all you need to put the 4L80E into your muscle car aside from driveline shortening and crossmember mods or fabrication. We will also offer tech support to help with the install. We have installed them in most of the early GM cars.

Pricing is $5600 plus $250 shipping within the continental United States (restrictions apply).

We are also offering a freshen up program for our customers who need a repair or rebuild after the warranty period or for maintenance in high powered combo’s. This service includes all new frictions, steels, bands, shift solenoids, rebuild labor, and dyno time. It renews the warranty. It does not include the converter cut and clean, or hard parts. It is only applicable to Jake’s Performance builds and customers. The 4L80E service will be $1250, not including any parts upgrades or shipping. See our pricing table below for hard parts and upgrade costs.

4l80e Transbrake Install

PriceHard Part Upgrade Item
$300Case for 91-98 (includes cleaning, inspecting, and painting)
$500Case for 99-up (includes cleaning, inspecting, and painting)
$250Pump
$150Overdrive Assembly
$700Billet Overdrive Assembly
$200Rear Planetary Geartrain
$50O/H Kit
$10Filter
$50Solenoids
$13006 pinion heavy duty 2.75 ratio gearsets. These work well in heavy vehicles and some towing or 4×4 applications.
$23102.10 ratio gearsets. These work well in big power drag racing combos that need to tame the launch.
$55034 element sprag steel drum (high RPM combos)
$85036 element Super sprag aluminum drum (high RPM combos)
$675Mechanical speedometer tailhousing kits are available WITH transmission for this price. These include the tailhousing with new bushing, seal, o-ring, speedometer gears calibrated for your combo, and driven speedo housing.
